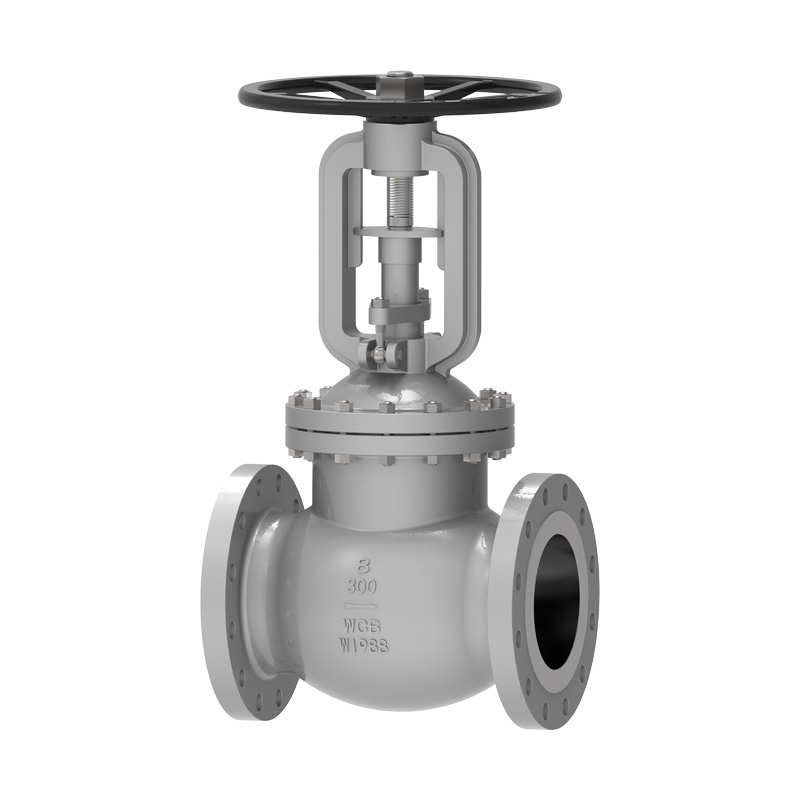

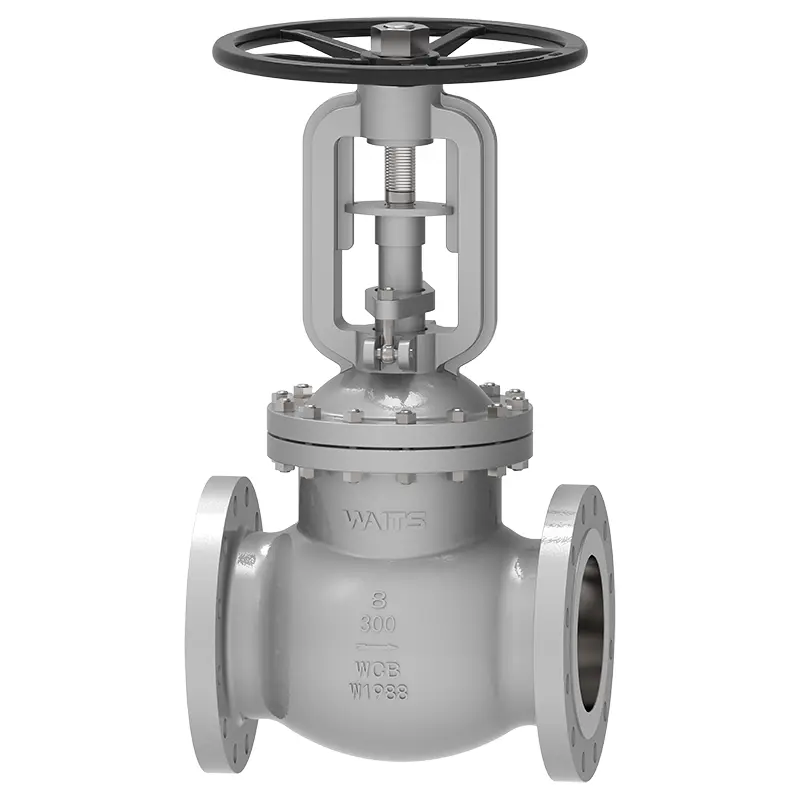

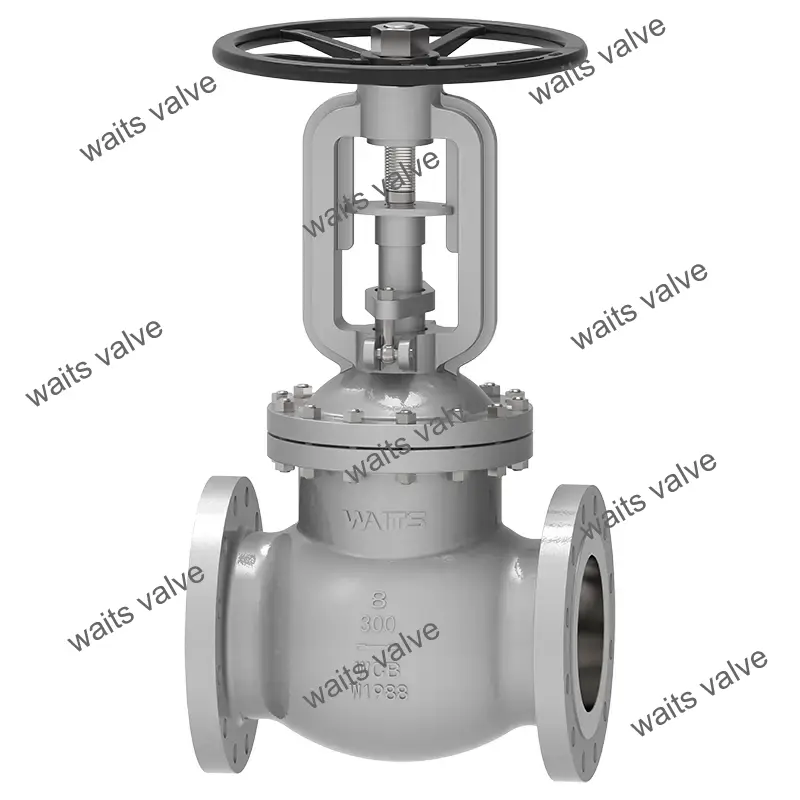

Bellow seal globe valve is a reliable valve manufactured by Waits. The product can be used in urban heating, gas transmission, steam pipelines and large water conservancy projects. It has a price advantage and has been recognized by many overseas factory customers. It is widely sold in Italy, France, Spain in Europe, and Saudi Arabia, Iran, Israel in the Middle East.
The bellow seal globe valve is welded by automatic rolling welding to form a metal barrier between the fluid medium and the atmosphere, ensuring the zero leakage design of the valve stem. The internal structure of this valve is a bellows structure. The lower end of the stainless steel bellows is welded to the valve stem to prevent the process fluid from corroding the valve stem. The other end is placed between the valve body and the valve cover to form a static seal. The double sealing design is adopted. If the bellows fails, the valve stem packing will also avoid leakage. The bellows are welded to the valve stem to maintain stable operating performance and avoid valve stem vibration caused by valve plug vibration. It is most suitable for pipelines with steam, flammable, explosive, thermal oil, high purity, toxic and other media.
कार्यान्वयन मानकहरू
डिजाइन मापदण्डहरू | ASME B16.34 DIN3356, |
Flange standards | DIN2543-2545, ASME B16.5, ASME B16.47 |
जडान विधिहरू | आरएफ |
परीक्षण र स्वीकृति | DIN3230, API 598 |
संरचनात्मक लम्बाइ | DIN3203, ASME B16.10 |
दबाव र तापमान मूल्याङ्कन | ASME B16.34, |
फायरप्रूफ परीक्षण | API607, API6FA |
कम रिसाव मानकहरू | ISO 15848-1, API 622 |
विरोधी जंग डिजाइन | NACE MR 0103 ,NACE MR 0175 |
आवेदन
साइज | NPS 2″~ NPS 24″ DN50 ~ DN600 |
दबाव दायरा | CL150~CL1500 PN10 ~ PN260 |
तापमान दायरा | -20 ℃ ~ 350 ℃ |
आवेदन दायरा |
Tap water, sewage, construction, petroleum, chemical industry, food, medicine, textile, electricity, shipbuilding, metallurgy, energy system, etc. |
ड्राइभ मोड |
Handwheel, bevel gear, electric, pneumatic, etc. |
भल्भ बडी/भल्भ कभर | (A216 WCB, WC6, WC9, LCB, CF8, CF8M, CF3, CF3M, 4A, 5A, 6A), मिश्र 20, मोनेल... |
सील सतह | शरीर, शरीर क्लेडिंग फलाम-आधारित मिश्र धातु, क्लेडिंग हार्ड-आधारित मिश्र धातु |
वाल्व स्टेम | F6A F304 F316 F51 F53 Monel K500 |
वाल्व स्टेम नट | तामा मिश्र धातु |
प्याकिङ | लचिलो ग्रेफाइट, ग्रेफाइट एस्बेस्टोस प्याकिङ, पोलिटेट्राफ्लुरोइथिलीन... |
Advantages of bellow seal globe valve
1. उचित उत्पादन संरचना, भरपर्दो सील प्रदर्शन, सुन्दर उपस्थिति;
2. सह-आधारित कडा मिश्र धातु सील सतहमा सतह, राम्रो पहिरन प्रतिरोध, जंग प्रतिरोध, विरोधी घर्षण प्रदर्शन, लामो सेवा जीवन;
3. भल्भ स्टेम टेम्परिङ र सतह नाइट्राइडिङ उपचार, राम्रो विरोधी जंग र विरोधी घर्षण प्रदर्शन संग;
4. बेलो सील ग्लोब भल्भ डबल सील, अधिक विश्वसनीय प्रदर्शन;
5. भल्भ स्टेम लिफ्टिंग स्थिति संकेत, अधिक सहज;
6. पार्ट्स सामाग्री, फ्ल्यान्ज र बट वेल्डिंग नम्बर साइज विभिन्न इन्जिनियरिङ आवश्यकताहरू पूरा गर्न वास्तविक अवस्था वा प्रयोगकर्ता आवश्यकताहरू अनुसार उचित रूपमा चयन गर्न सकिन्छ।
Product features of bellow seal globe valve:
1. डबल सील डिजाइन (बेलो + प्याकिंग)। यदि बेलोहरू असफल भएमा, भल्भ स्टेम प्याकिङले चुहावटबाट बच्न र अन्तर्राष्ट्रिय सील मापदण्डहरू पूरा गर्नेछ;
2. No fluid loss, reduce energy loss, and improve factory equipment safety;
3. लामो सेवा जीवन, मर्मत समय घटाउनुहोस्, र सञ्चालन लागत घटाउनुहोस्;
4. Strong and durable bellows sealing design ensures zero leakage of the valve stem and provides maintenance-free conditions;
5. The gas medium valve seat adopts PTFE soft sealing material to improve the sealing of this valve;
6. उच्च तापक्रम प्रतिरोधी भल्भ सीटले वायुरोधी कार्यसम्पादनको शून्य चुहावट प्राप्त गर्न कोनिकल हार्ड सीललाई अपनाउँछ;
